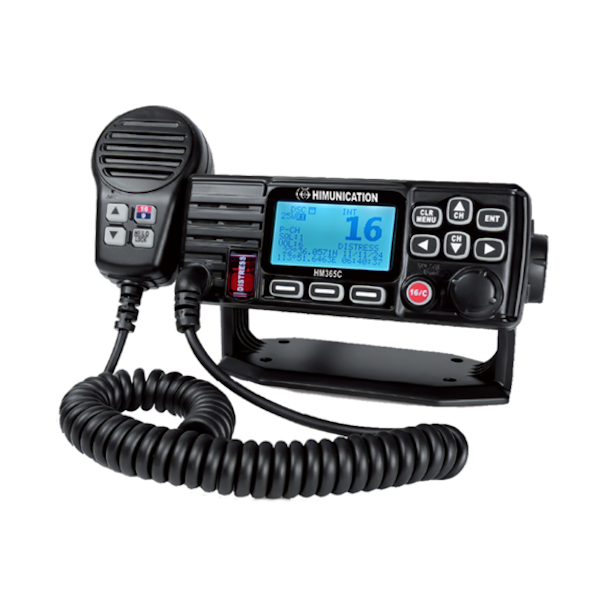

HIMUNICATION HM365C VHF Radio DSC Klasse D m. GPS og NMEA2000

HIMUNICATION HM365C VHF Radio DSC Klasse D m. GPS og NMEA2000

Specifikationer:

• TX Frequency……………………………………………………156.025--157.425MHzRX
• Frequency…………………….……………………………..……156.300--162.000MHzDigital Selectivity Calling
• (DSC)…………………………....…………………………………..Class-D with dual receiver (individual
• CH70)CH70………………………………………………………156.525MHz
• Channel spacing…………….…………………………………25kHz
• Channel banks……………….…………………………………All INT/USA/Canadian 10 WX (only available for USA and Canada)
• Modulation mode………….…………………………………FM (16K0G3E), DSC/ATIS(16K0G2B)
• Frequency stability ………….………………………………±5ppm
• Ambient operating  temperatures….……….………-20˚Cto+60˚C
• Waterproof……………………………………………….………IPX8
• Compass safe distance……………………………...……..1.0m
• Buddy list……………………………………………………….…20/50/100
• Private channels……………………………………….……….99
• Antenna impedance………………………………….……...50Ω(nominal)
• Power supply……………………………………………..……..13.8VDC

Receiver:

• Receive system ……………………………………………….. Double-conversion super hetero dyne
• Intermediate frequency ……………………………..……..1st 38.85 MHz, 2nd450kHz
• Sensitivity at 12dB SINAD……………………………....…≤ -6dBμV(EMF)
• Squelch sensitivity……………………………………….....…≤ -6dBμV(EMF)
• Spurious Resp.Rej………………………………………...……≥70dB
• Adjacent Channel Rejection……………………………....≥70dB
• Intermodulation ……………………………………………..…≥68dB
• Audio frequency response ………..…………………..… +1 dB to –3 dB of 6 dB oct. from300–3000Hz
• Audio output power………………….…………………….…10W@4Ω
• Audio Distortion………………………...……………………....≤5%

Transmitter:

• RF Output power………………………………………………...High:25W/ Low:1W
• Harmonic Emissions……………………..………………...…. 0.25µW
• Residual modulation …………………….………………..…. 40dB
• Current drain, Stdby / TX (high) / RX ...…………….…0.5A/ 5A/ 1A(@13.8V
• Maximum frequency deviation………….…………….…±5.0kHz
• Local Oscillator mode…………………………....……………PLL
• Audio frequency response ……………………………......+1 dB to –3 dB of 6 dB oct. from300–3000Hz

Communications:

• Comm. port NMEA 0183………………………..……………default 38400baud
• Comm. port NMEA 2000 ( N2K or AIS VHF)...……...NMEA2000
• NMEA 0183 input (receive)………………………….…..…. GGA,GLL,GSV,RMC,VTG,ZDA
• NMEA 0183 output (transmit)……………….……..……….DSC (for DSC call), DSE (for enhanced position)AIVDM(AIS)AIS

Receiver (only AIS VHF)

• Frequency …………………………………………………...…….161.9750MHz/162.025MHz
• Number of Channels……………………………………....…. Dual Channels

Dimension & Weight:

• Fixed unit dimensions (LxWxH)….…………………..……6.14”x2.40”x 4.13”(156 mmx 61 mmx105mm)
• Fixed unit dimensions on mounting bracket….……6.69”x 3.58”x4.80”(170 mmx 91 mmx122mm)
• Fixed unit Weight….………………………………………..……(0.95kg)
